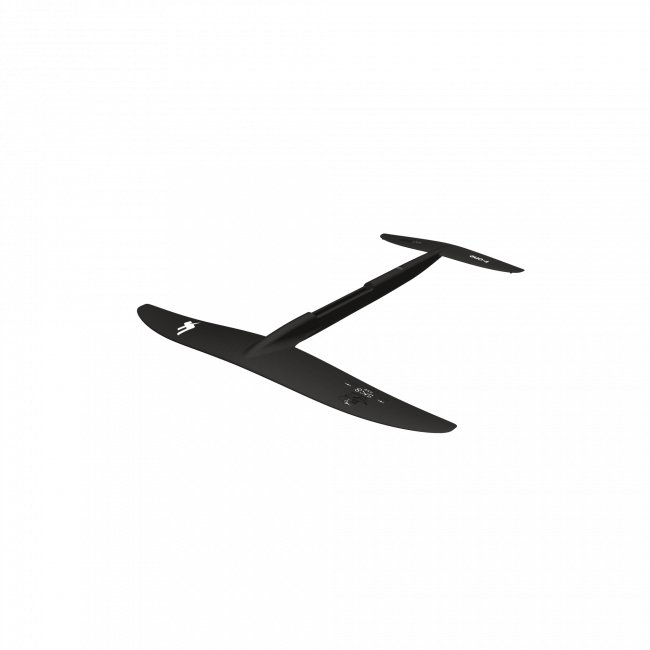

SK8 HM CARBON

Surfing - Carving

• ASPECT RATIO 8.0
• HIGH MODULUS CARBON
• MONOBLOC STRUCTURE
• TITAN CONNECTION
• PRE PREG TECHNOLOGY

Key points:

• Its outline makes it easy to turn and push hard during fast and controlled carves
• The subtle balance of the lobe between maneuverability and glide allows to surf freely while maintaining efficient pumping
• The wingtips’ design is made to hit the foam and breach the wingtip without turbulence or cavitation
• Its unique speed makes it a perfect foil for surfing from offshore swells to the shore- break with a wing

Monobloc structure:

• Having a stiff and solid assembly between all the parts of the foil is key to making it perform at its best as well as easy to handle.
• The connection of the front wing with the fuselage is highly stressed and loaded, so it is one of the critical areas of the assembly in terms of structures.
• The Monobloc wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.

Tail monobloc structure:

• The monobloc construction improves stiffness and reduces turbulence by eliminating connections and providing a more streamlined design. This premium connection will make any foil more playful, more stable, and faster. The monobloc also removes two screws; you’ll be on the water faster!

Sizes and specs:

550 + XS 140 CARVING

• SK8 HM Carbon 550cm2

  • Span 67
  • AR 8.2
  • 0.78kg
• Monobloc Tail Carving XS 140

  • Fuselage XS
  • Span 30
  • AR 6.4
  • TBAkg

650 + XS 140 CARVING

• SK8 HM Carbon 650cm2

  • Span 72.5
  • AR 8.1
  • 0.89kg
• Monobloc Tail Carving XS 140

  • Fuselage XS
  • Span 30
  • AR 6.4
  • TBAkg

750 + XS 140 CARVING

• SK8 HM Carbon 750cm2

  • Span 77.5
  • AR 8.0
  • 1.03kg
• Monobloc Tail Carving XS 140

  • Fuselage XS
  • Span 30
  • AR 6.4
  • TBAkg

850 + XS 160 CARVING

• SK8 HM Carbon 850cm2
  • Span 82.5
  • AR 8.0
  • 1.09kg
• Monobloc Tail Carving XS 160

  • Fuselage XS
  • Span 33
  • AR 6.8
  • TBAkg

950 + XXS 200 CARVING

• SK8 HM Carbon 950cm2

  • Span 87
  • AR 8.0
  • 1.20kg
• Monobloc Tail Carving XXS 200

  • Fuselage XS
  • Span 37
  • AR 6.8
  • 0.27kg

1050 +XXS 200 PUMPING

• SK8 HM Carbon 1050cm2

  • Span 91.5
  • AR 8.0
  • 1.35kg
• Monobloc Tail Pumping XXS 200

  • Fuselage XXS
  • Span 39
  • AR 7.6
  • TBAkg

1150 +XXS 200 PUMPING

• SK8 HM Carbon 1150cm2

  • Span 96
  • AR 8.0
  • 1.46kg
• Monobloc Tail Pumping XXS 200

  • Fuselage XXS
  • Span 39
  • AR 7.6
  • TBAkg
