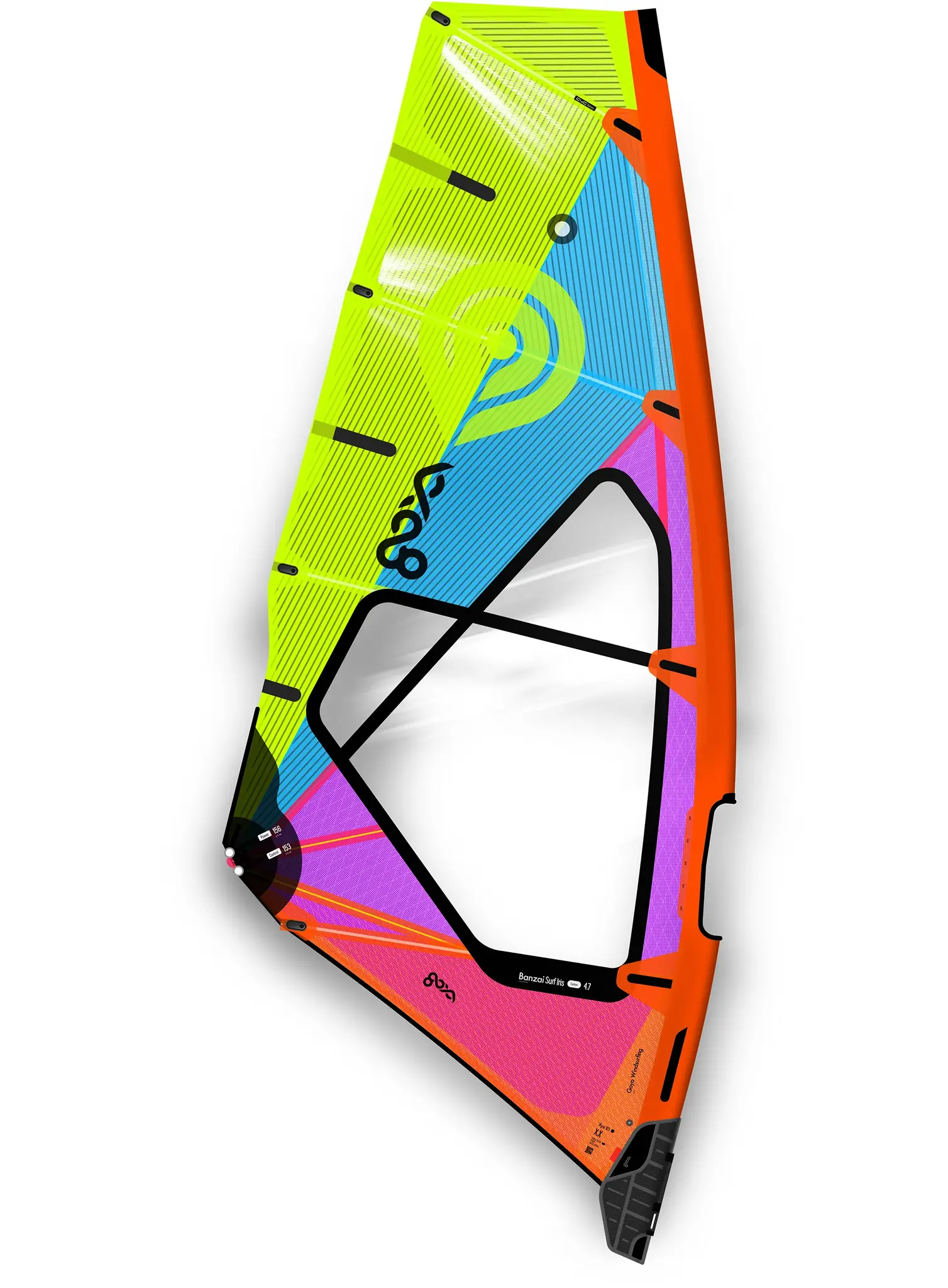

Carbon Construction: Bi-Ply window, Warp Carbon and Scrim panels. The Warp Carbon reinforced Technora X-ply pannels in the upper part provides foundational profile stability in the shape design of the sail plus excellent durability.

Construction and materials:

• Main window panel – 6 mil Bi-PLY from Dimension Polyant features two 3 mil layers of PET film. This creates a softer hand, improved flex and reduced creasing.  The UV inhibitors in the adhesive significantly increases the UV life of the product in comparison to a traditional monofilm.
• Upper color body panels – 1.5 mil Ultra low stretch linear Warp Carbon fiber laminate yarns arrayed to control load lines in the sail combined with super strong Technora aramid x-ply.    Warp Carbon gives incredible linear control of the sail profile while also allowing a dynamic, torsional, bias stretch and return. This makes the sails feel very quiet, weightless and very resistant to being overpowered.
• Lower body color panels - 2.5 mil Scrim from Dimension-Polyant is a polyester scrim plus X-PLY® which are designed for reduced weight while still offering reduced stretch of a traditional X-PLY only product.
• Foot/Tack panel – 4 mil Aramid Scrim has an upgraded scrim with larger denier fibers, while still keeping the high tenacity aramid X-PLY®.   It has a much greater tear and puncture resistance at the highest impact of pure wave riding.
• Welded Seams - Welded Seam technology reduces build weight and increases strength on film to film seams.
• Double stitching – Around the main window.
• Dacron Leech edge reinforcement.
• Folded rear/cut edge on mast sleeve to prevent fraying.
