Details

• Due to the Atlas’ unique high camber profile, early lift, and stall resistance, it is recommended sizing down 10-20% compared to other foils on the market.

Available Sizes and Speed Ranges:

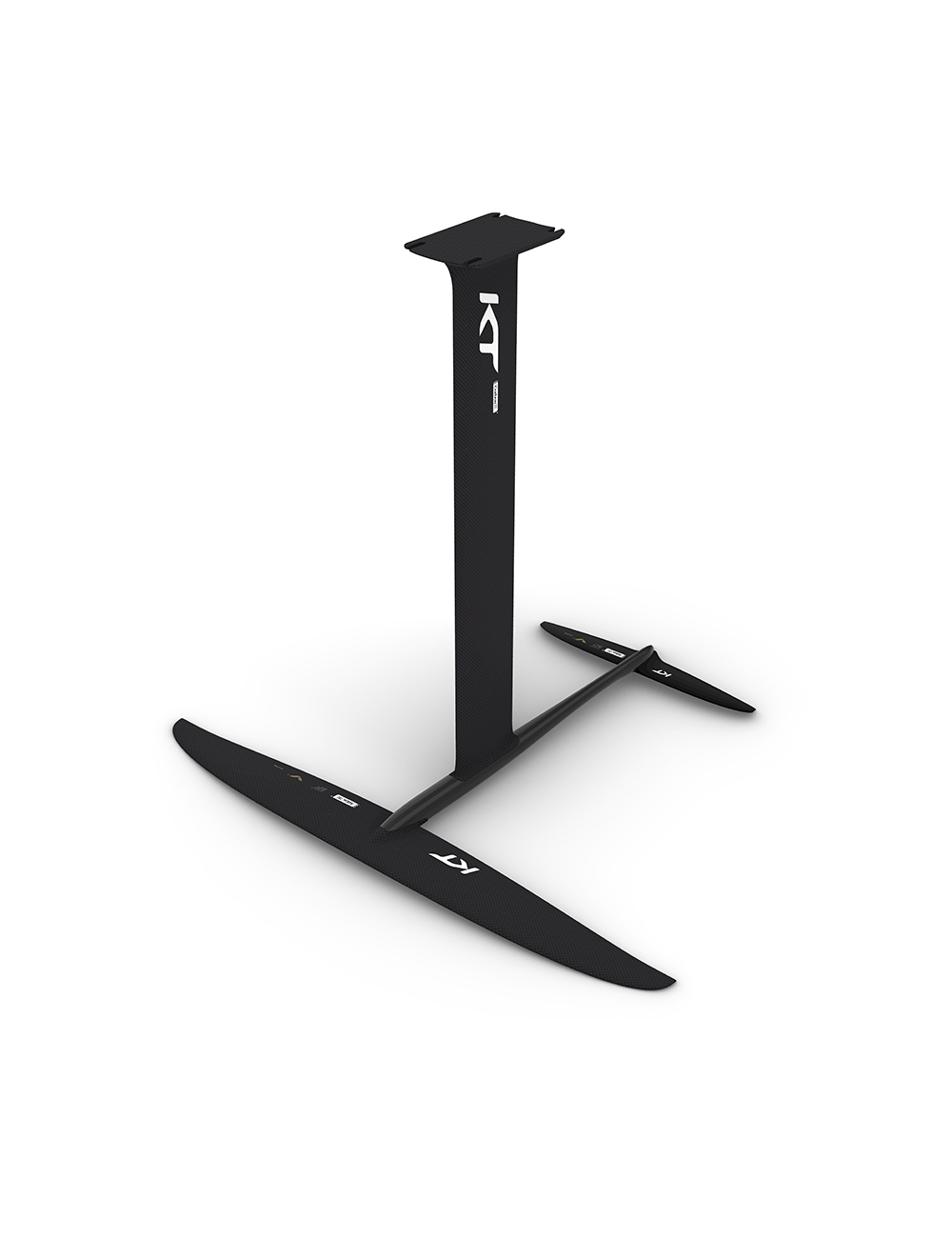

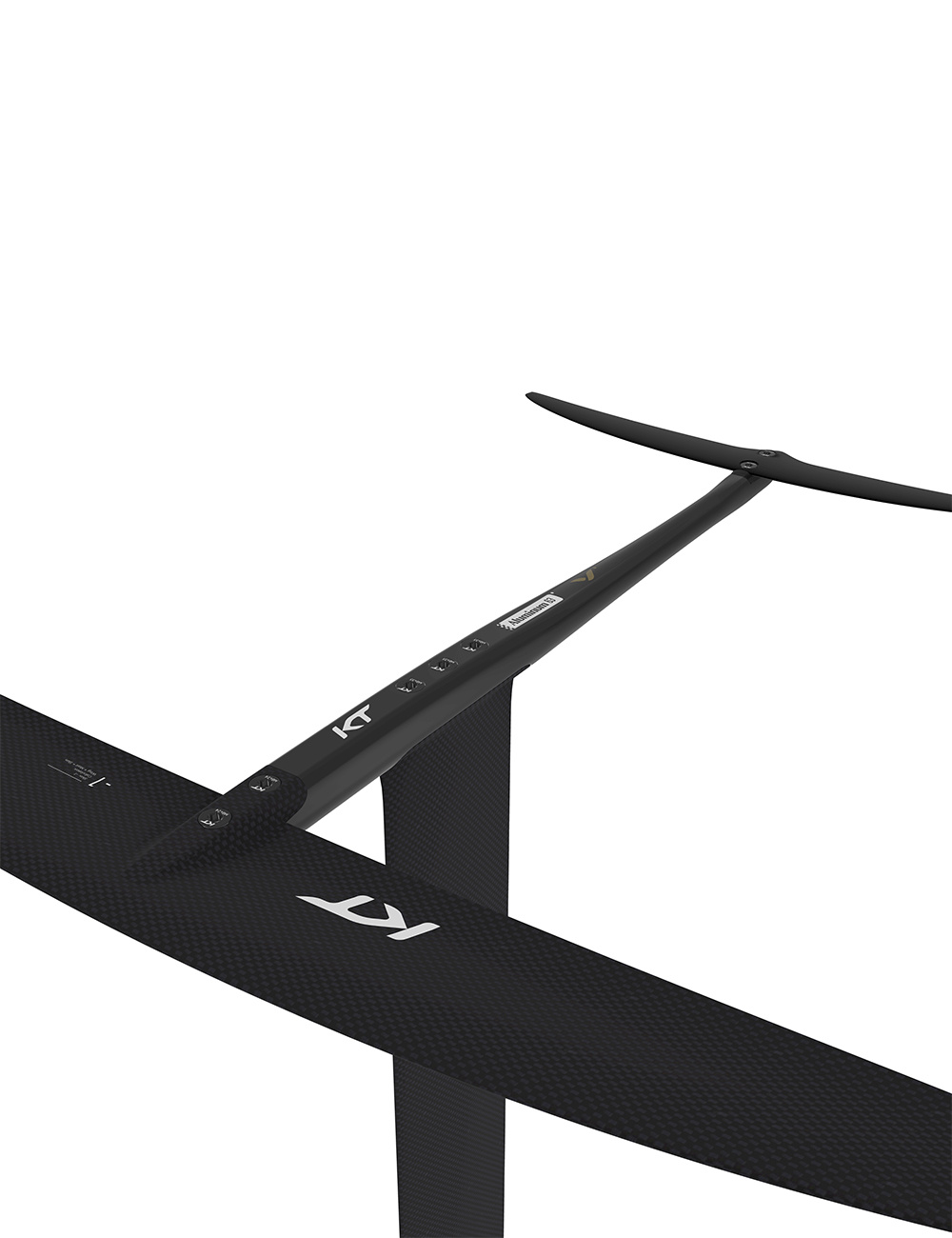

• Atlas 680/145 - F56 - M77C
  • Front wing Atlas 680 cm²: 7.4 - 29.5 kn
  • Stabilizer Atlas 145
  • Fuselage 56 cm
  • 77 cm high-module carbon mast
• Atlas 790/170 - F56 - M77C
  • Front wing Atlas 790 cm²: 7 - 28.7 kn
  • Stabilizer Atlas 170
  • Fuselage 56 cm
  • 77 cm high-module carbon mast
• Atlas 790/170 - F63 - M77C
  • Front wing Atlas 790 cm²: 7 - 28.7 kn
  • Stabilizer Atlas 170
  • Fuselage 63 cm
  • 77 cm high-module carbon mast
• Atlas 960/170 - F63 - M77C
  • Front wing Atlas 960 cm²: 6.1 - 26 kn
  • Stabilizer Atlas 170
  • Fuselage 63 cm
  • 77 cm high-module carbon mast

Highlights

• Glide-Oriented Geometry: Low sweep with center of lift aligned for maximum efficiency at design speeds.
• Advanced High Camber Airfoil: Optimized for maximum efficiency across a wide speed range, with a rear-loaded design that reduces surface area and boosts low-speed performance while maintaining stability and control.
• Wide Range Efficiency: Maintains performance from low to high speeds.
• Precision and Control: Offers reactive control for tight turns and deep carves.
• Inflected Wingtips: Maximizes control through surface-piercing breaches with high resistance to ventilation.
• High-Speed Performance: Exceptional acceleration and controlled top speeds.
• Progression-Driven Design: Crafted to support and ele- vate rider progression.
• Optimized for Surf and Downwind: Tailored for surf, wing, kite, or SUP foilers seeking ultimate freedom and performance.
